ELECTRICAL CONNECTORS

PEM  J  Series Cable Entries are made of cast bronze, brass, and stainless steel fitted.

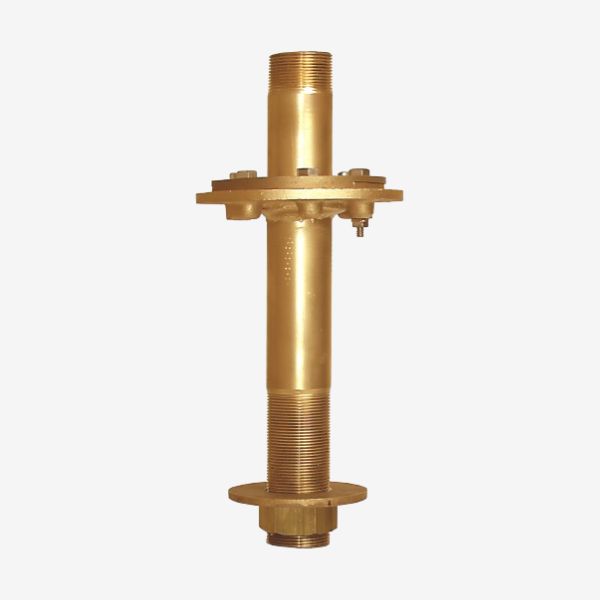

PEM J60

RED BRASS CONDUIT STUBUPS FOR SUBMERSIBLE JUNCTION BOXES

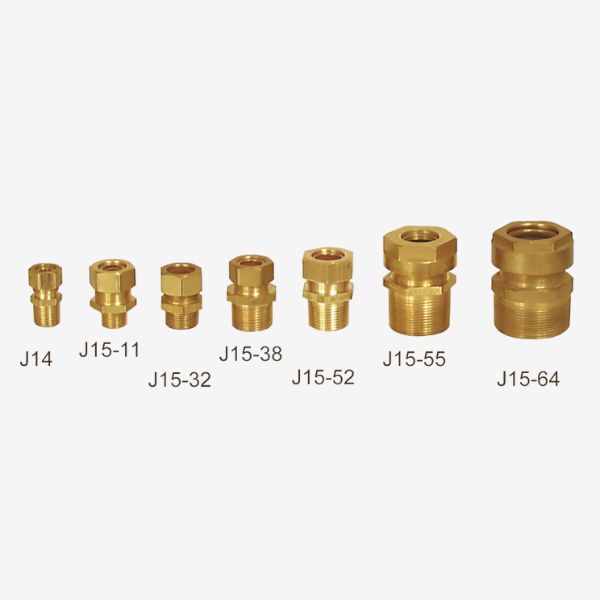

PEM J Series Cordseals are made of brass or 304 Stainless Steel and fitted with Neoprene glands.

All Cordseals can be supplied at extra cost in 316 Stainless Steel for use in seawater/saltwater.

Stainless Steel cord seals are mandatory for the USA. Be aware of grounding regulations for Wet Niches in the USA.

The 6380 Series functions as a watertight stub-up designed for securing penetrations through concrete

and membranes, directly applicable to water feature pools.

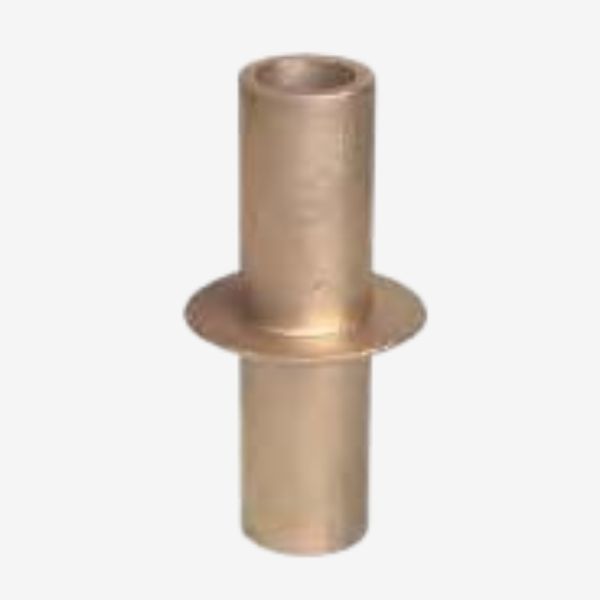

PEM 63730

PIPE COUPLINGS for concrete
611-1330 SERIES

# PEM T H1 D1

611-1331 637311 1" 200 100

611-1332 637312 1 1/2" 200 100

611-1333 637313 2" 200 150

611-1334 637314 2 1/2" 200 150

611-1335 637315 3" 200 200

611-1336 637316 4" 200 200

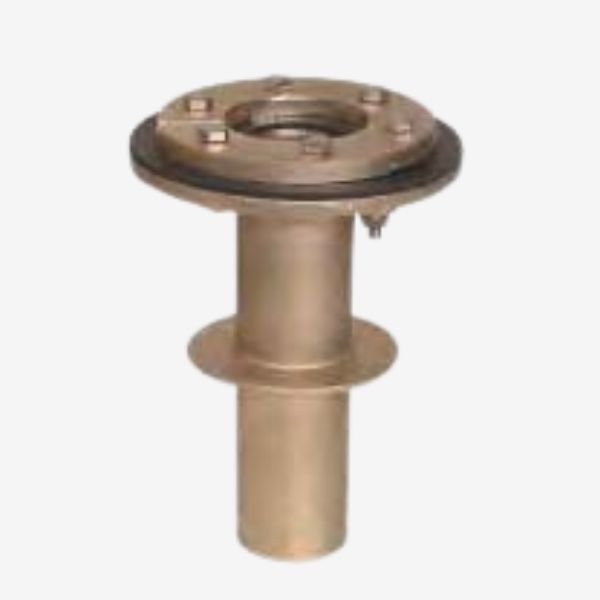

PEM 63740

PIPE COUPLINGS for pools

611-1340 SERIES

# PEM T H1 D1

# PEM T H1 H2 D1 D2

611-1341 637421 1" 200 6 100 134

611-1342 637422 1 1/2" 200 10 100 152

611-1343 637423 2" 200 10 150 152

611-1344 637424 2 1/2" 200 10 150 203

611-1345 637425 3" 200 10 200 203

611-1346 637426 4" 200 10 200 203

PEM A460-1 & A460-2

376-3100 SERIES

376-3120 SERIES

SPECIFICATIONS

• Cast bronze

• NPT and BSPT threading available

• IP68 Rated

• UL & cUL Rated

• Custom hole patterns available

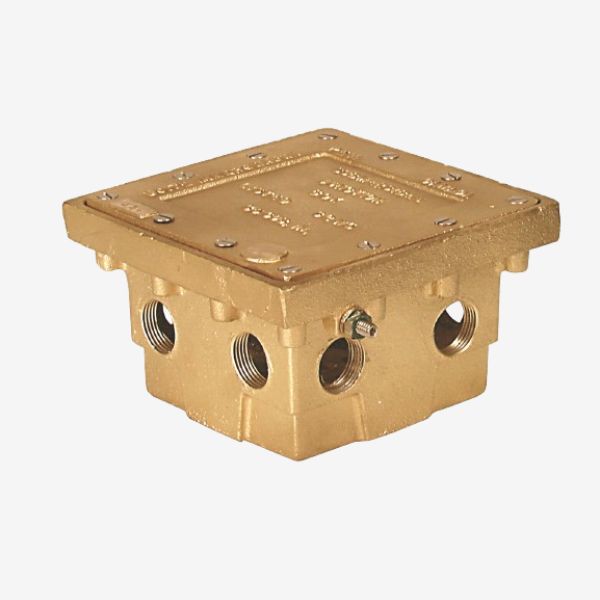

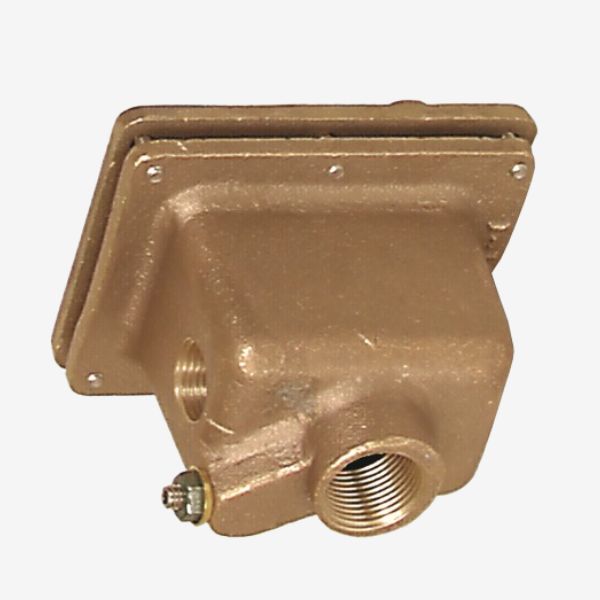

SUBMERSIBLE, FLUSH MOUNTED JUNCTION BOX

The PEMJ34 JUNCTION BOXismade is of cast bronze, with a Neoprene cover gasket,

and is stainless steel fitted. It is equipped with a grout frame for flush installation into

concrete and a separate grounding connection for each outlet. All tappings are NPT

unless specified otherwise. When the box is ordered without tapping specifications, a

blank box without tappings will be supplied (PEM #375-4000).
