LED LIGHTING TECHNOLOGY

SPECIFICATIONS

Cool, White or Warm White, RGB & RGBW

316 Stainless Steel

MAT: 316 S. Steel or Bronze

GASKET: Silicone 'O' Ring

LENS: Polycarbonate

LAMP OPTIONS:

12VAC- 8.5W (10W Max) MR16 WHITE*

120v- 7w GU-10 White*

12VAC/12VDC/24VDC- 8.3 W (Max) Cree RGB LED LAMP, 10°, 20°

12VAC/12VDC/24VDC-11W (Max)

Cree RGBW LED LAMP, 20°, 35°

12VAC/12VDC/24VDC- 11W (Max) Cree WHITE LED LAMP , 20°, 35°

IP68 rated and cUL/ UL approved

* Note:

Any lamp available in the market within

10° to 60°

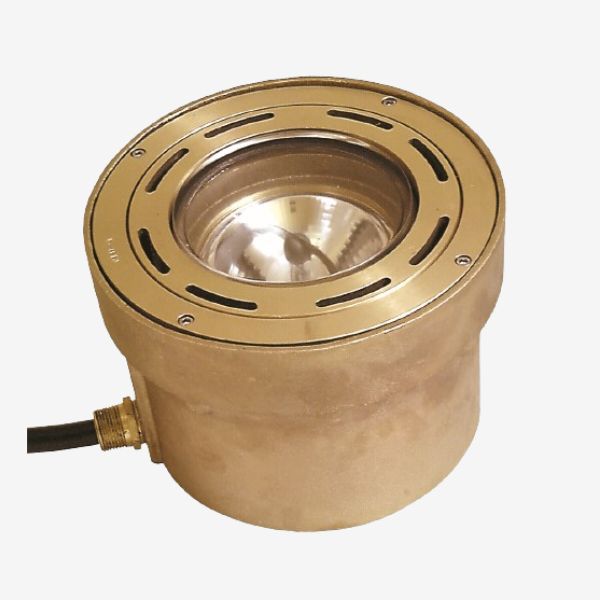

The PEM C131 Series offers a powerful lighting solution, perfect for submerged environments where effective illumination of tall vertical elements is needed, ensuring optimal optical performance for underwater or wall-washing applications.

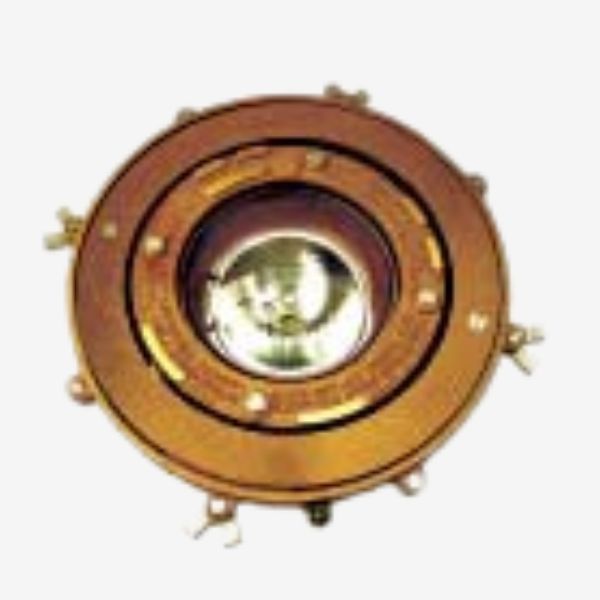

The C133 Series presents a high-powered lighting solution, ideal for submerged or dry settings requiring

effective illumination of tall vertical elements, ensuring optimal optical performance for underwater or

wall-washing applications.

PEM E40

SUBMERSIBLE LIGHT FIXTURE

1. T4-MC, cUL, 120V, max. 250W 'A' & 'B' Option. Excluding -2.

2. T4-MC, UL, 120V, max. 250W 'A' Option. Excluding -2.

3. T4-MC, CS, 240V, max. 250W 'A' & 'B' Option. Excluding -2.

4. JC, UL, 12V max. 75W / 24V max.150W. 'A' Option Excluding -2.

5. JC, cUL/CS/CE, 12V max.75W or 24V max.150W. 'A'&'B' Option. Excluding -2.

6. LV, UL 12V, 'A' UL Option. Excluding -2. (For MR 16 Lamps) 12V max. 75W.

7. LV, cUL/CS/CE, 12V,max. 75W. Submersible Use: 'A' & 'B' Option. Excluding -2. (For MR 16 Lamps)

8. DW-UL,C-UL, 120V, Max. 50W, GU10 Reflector Lamp, GZ10 Base.

9. DW-240V, Max. 50W., GU10 Reflector Lamp, GZ10 Base.

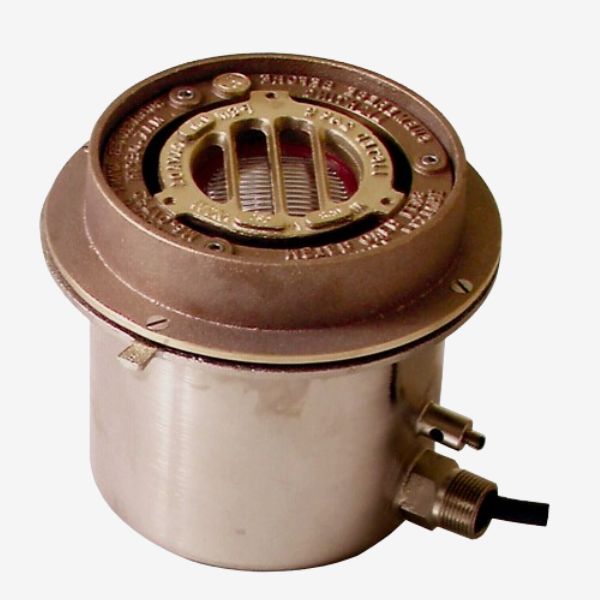

PEM E41

SUBMERSIBLE LIGHT FIXTURE

1. T4-MC, cUL, 120V, max. 250W.

2. T4-MC, UL, 120V, max. 250W.

3. T4-MC, CS, 240V, max. 250W.

4. JC, UL, 12V max. 100W / 24V max.150W.

5. JC, cUL/CS/CE, 12V max.100W or 24V max.150W.

6. LV, UL/cUL/CE, 12V, MR16 LED / Halogen 75W,

LED / Halogen Outside Canada / USA 24 VAC / 24VDC

7. DW, 120V / 240V, Max. 50W, (For GU10 Reflector Lamp)

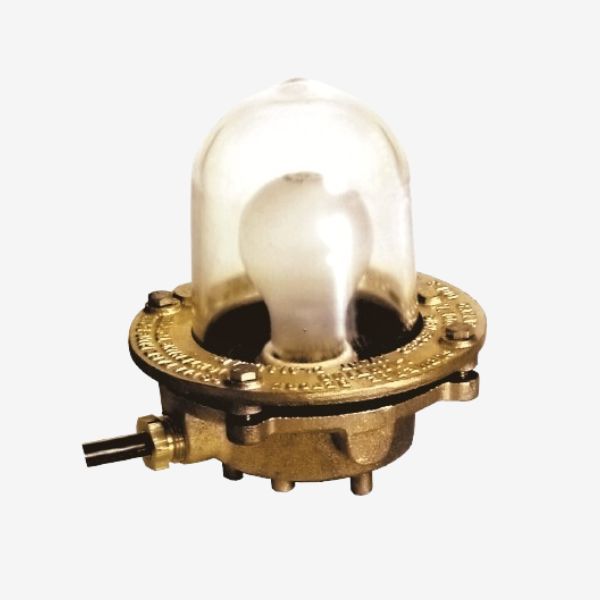

The PEM E100 Submersible light fixture is intended for submersible pond illumination, featuring an optional adjustable stainless steel reflector for directing light or concealing the light source, with a clear globe option.

The PEM E100 Submersible light fixture is intended for submersible pond illumination, featuring an optional adjustable stainless steel reflector for directing light or concealing the light source, with a clear globe option.

The low-profile submersible light fixture, equipped with an internal polished stainless steel parabolic reflector, produces a vertical rectangular light output ideal for the center of solitary vertical spray effects; when coupled with the B8 stand assembly, it can be rotated by 90 degrees to provide a rectangular horizontal light output for spray rings or waterfalls.

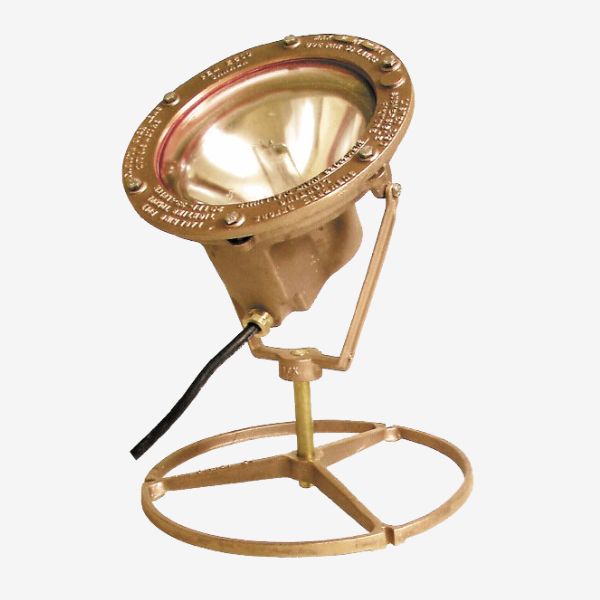

The PEM E500 Series presents a high-powered lighting solution, ideal for submerged settings requiring effective illumination of tall vertical elements, ensuring optimal optical performance for underwater or wall-washing applications
